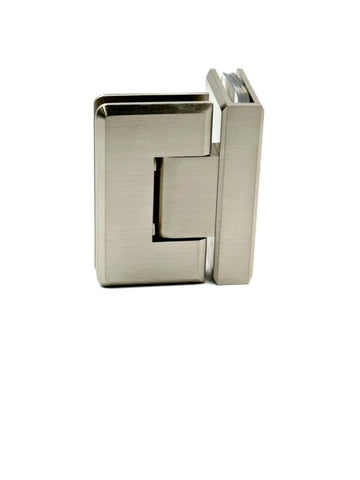

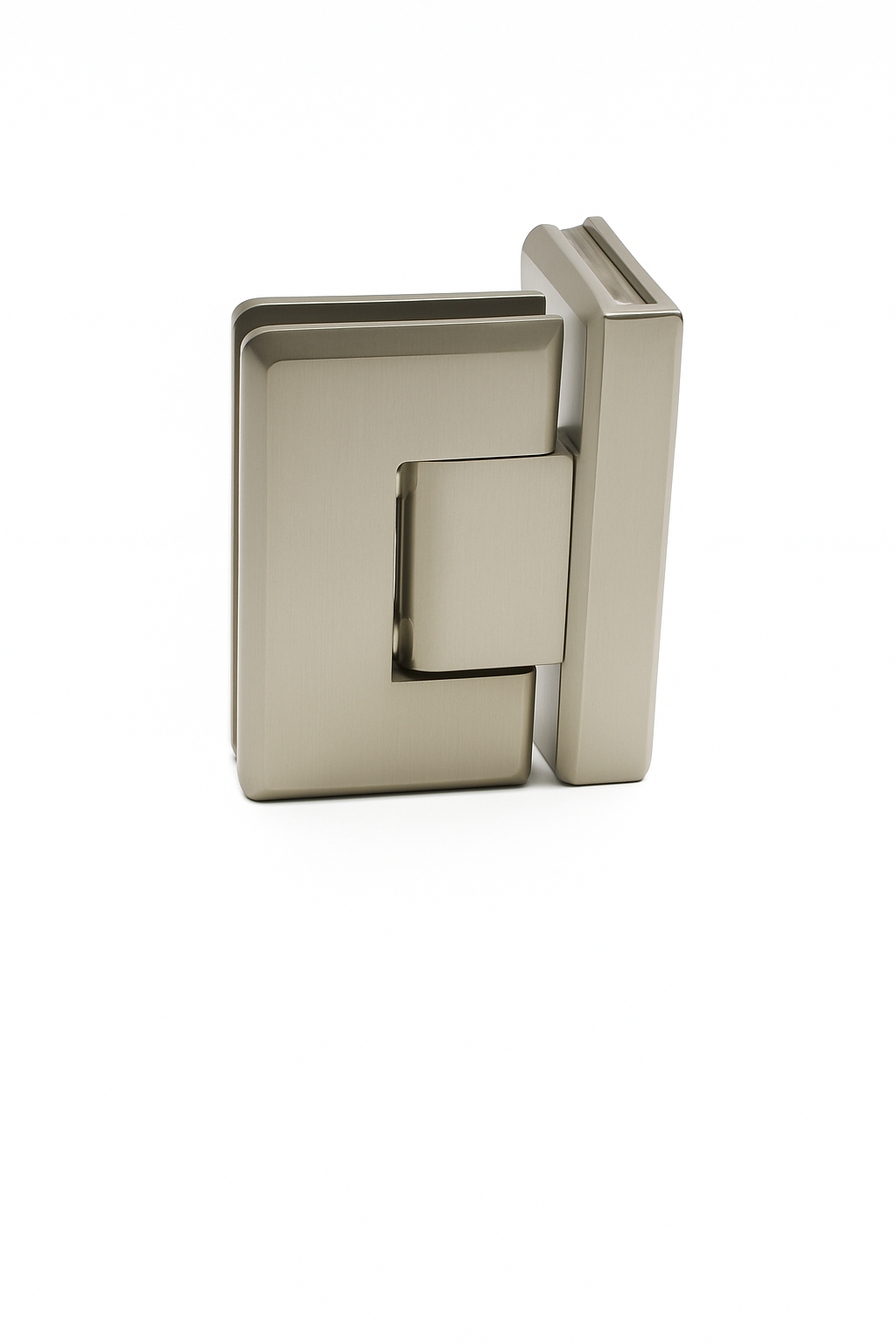

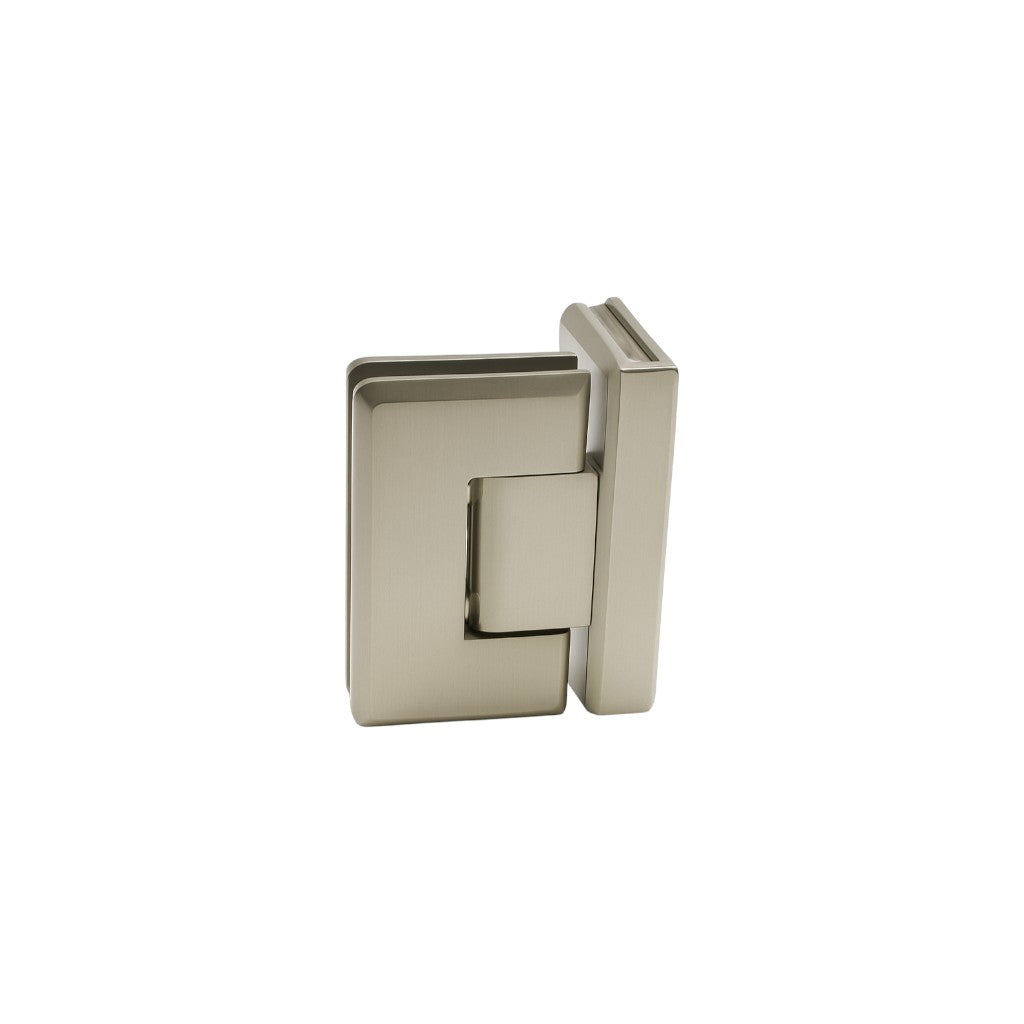

SH-033HB-SNP

Glass to Glass 90⁰

• Weight of door: 60kg using 2 hinges maximum
  - Glass width: maximum 914mm
  - Glass height: maximum 2200mm
  - Brass body
  - Glass Thickness: 10mm-12mm
  - Self-centering when within 25⁰ of closed position
  - Finish:  Satin Nickel Plated

• Please note: All hinges are sold individually (per unit), not as a pair
