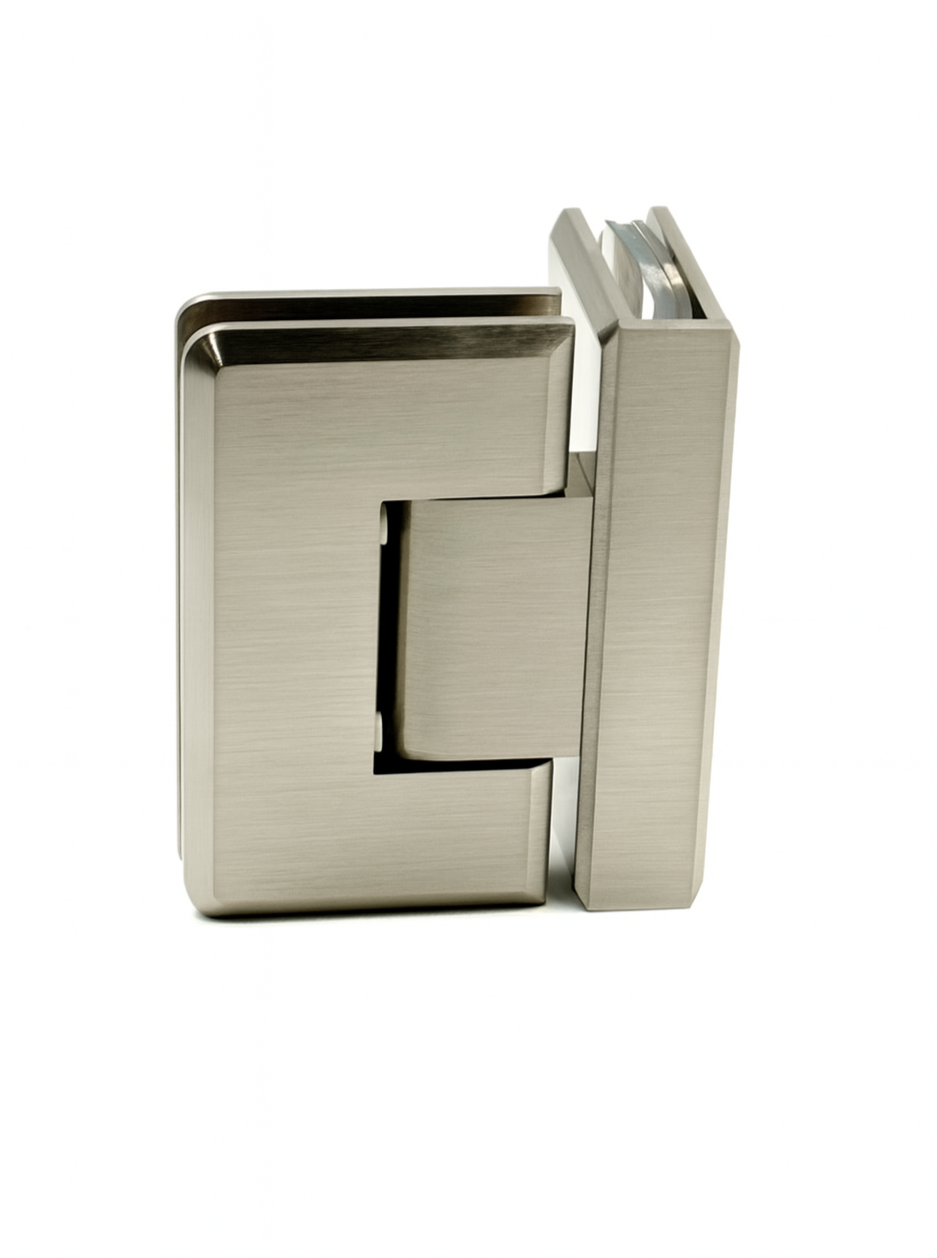

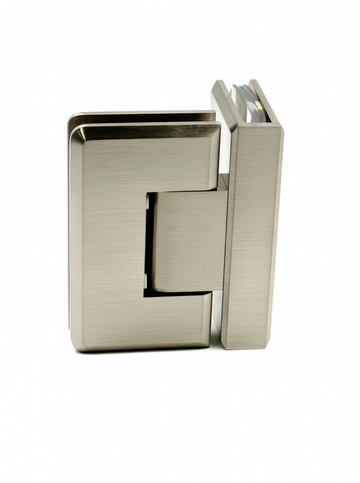

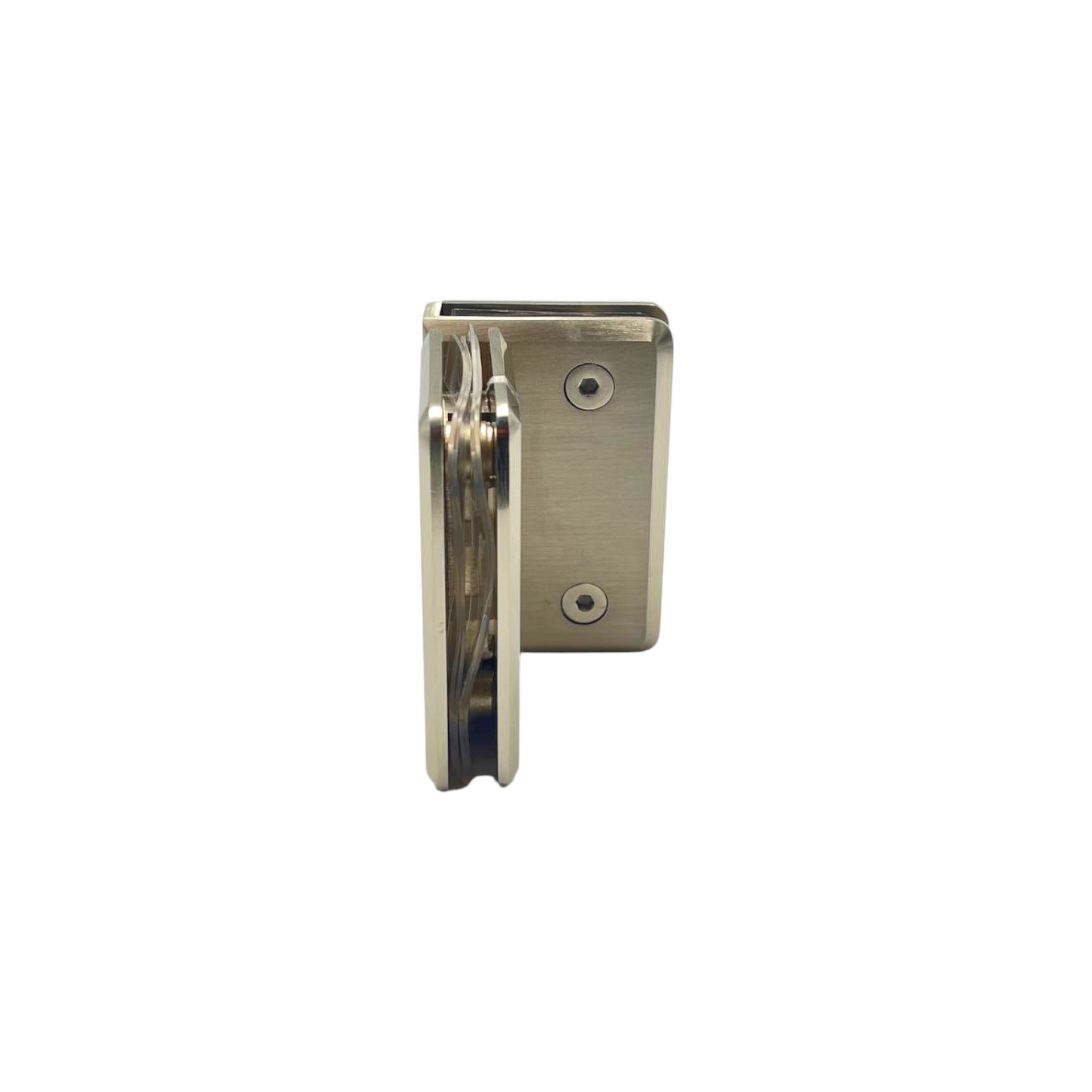

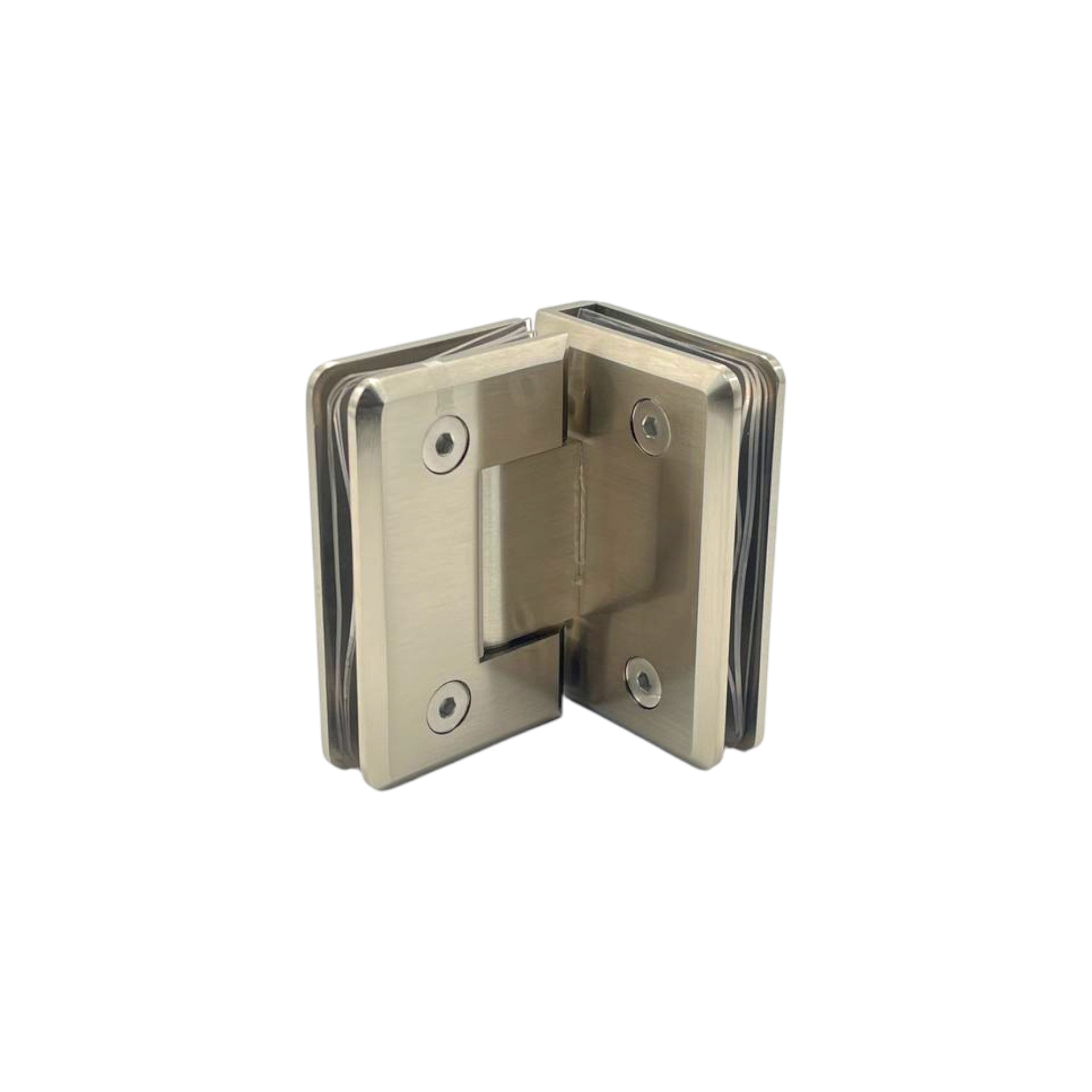

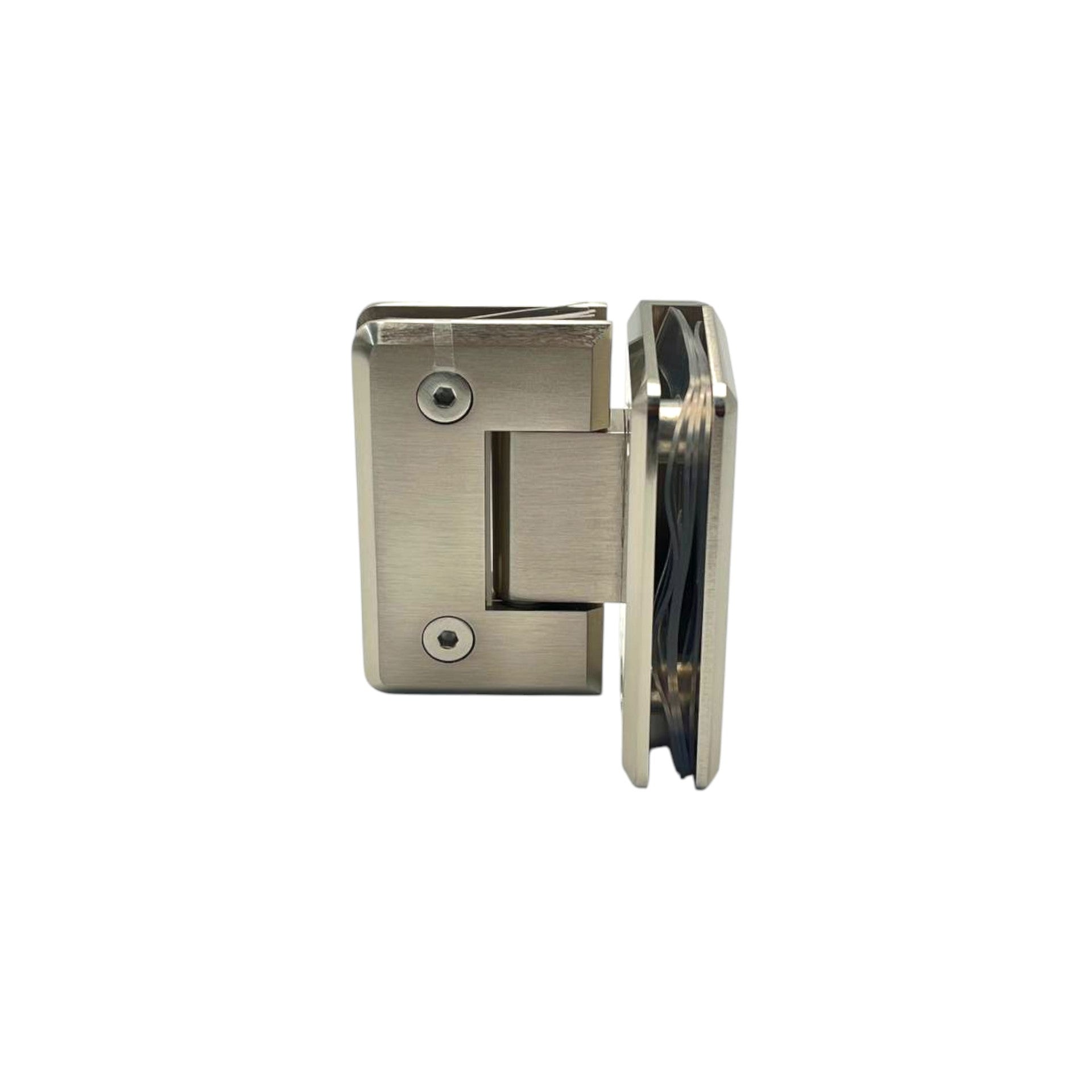

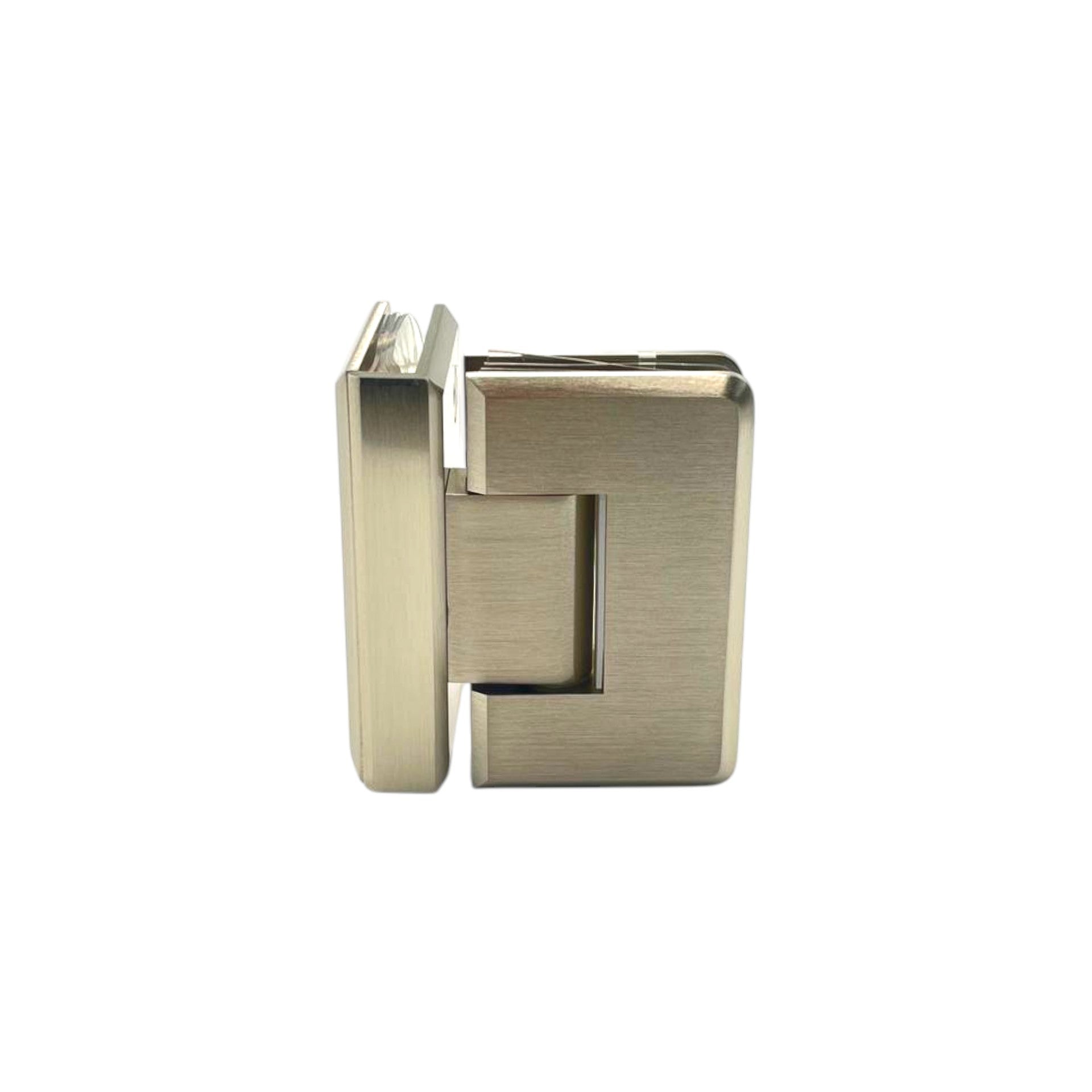

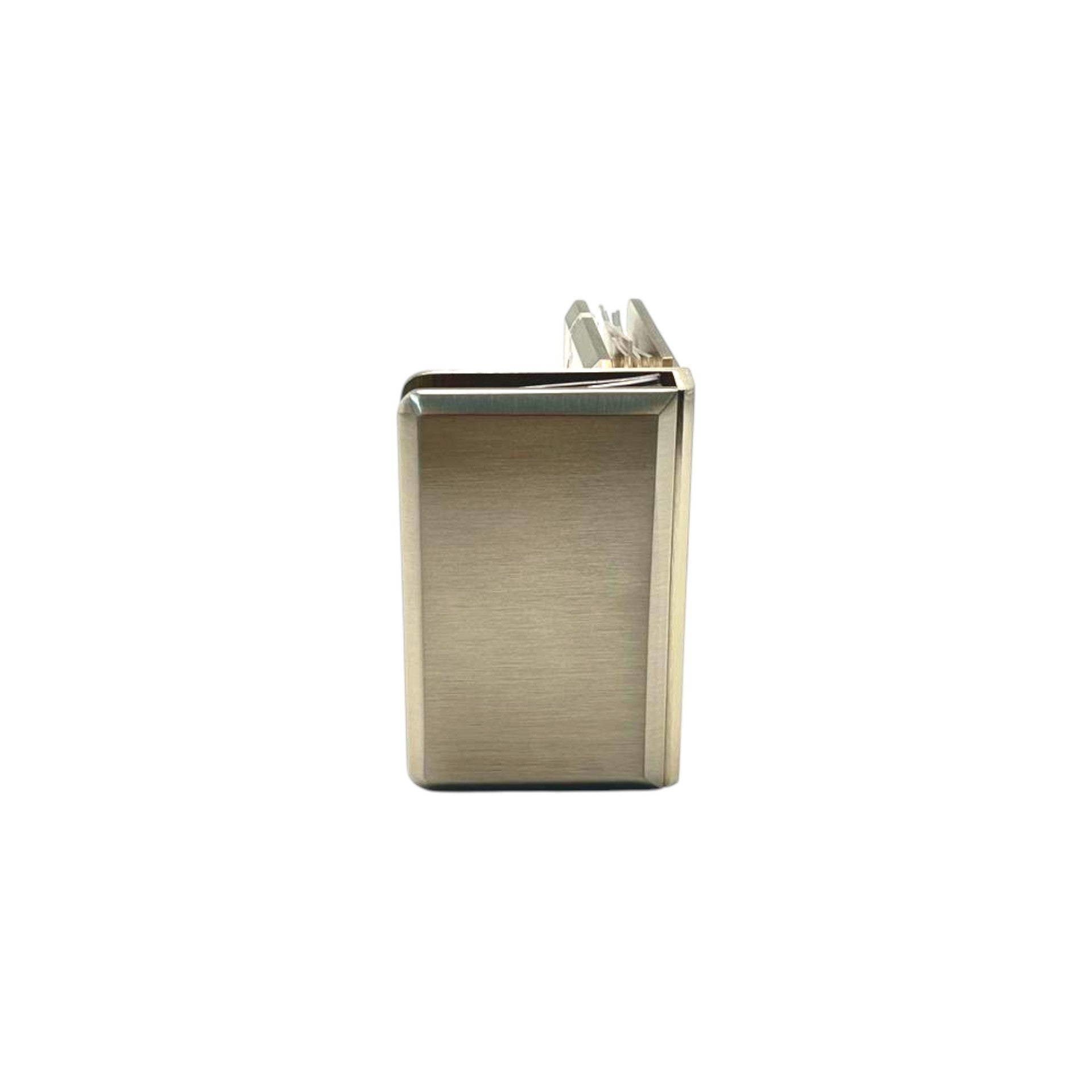

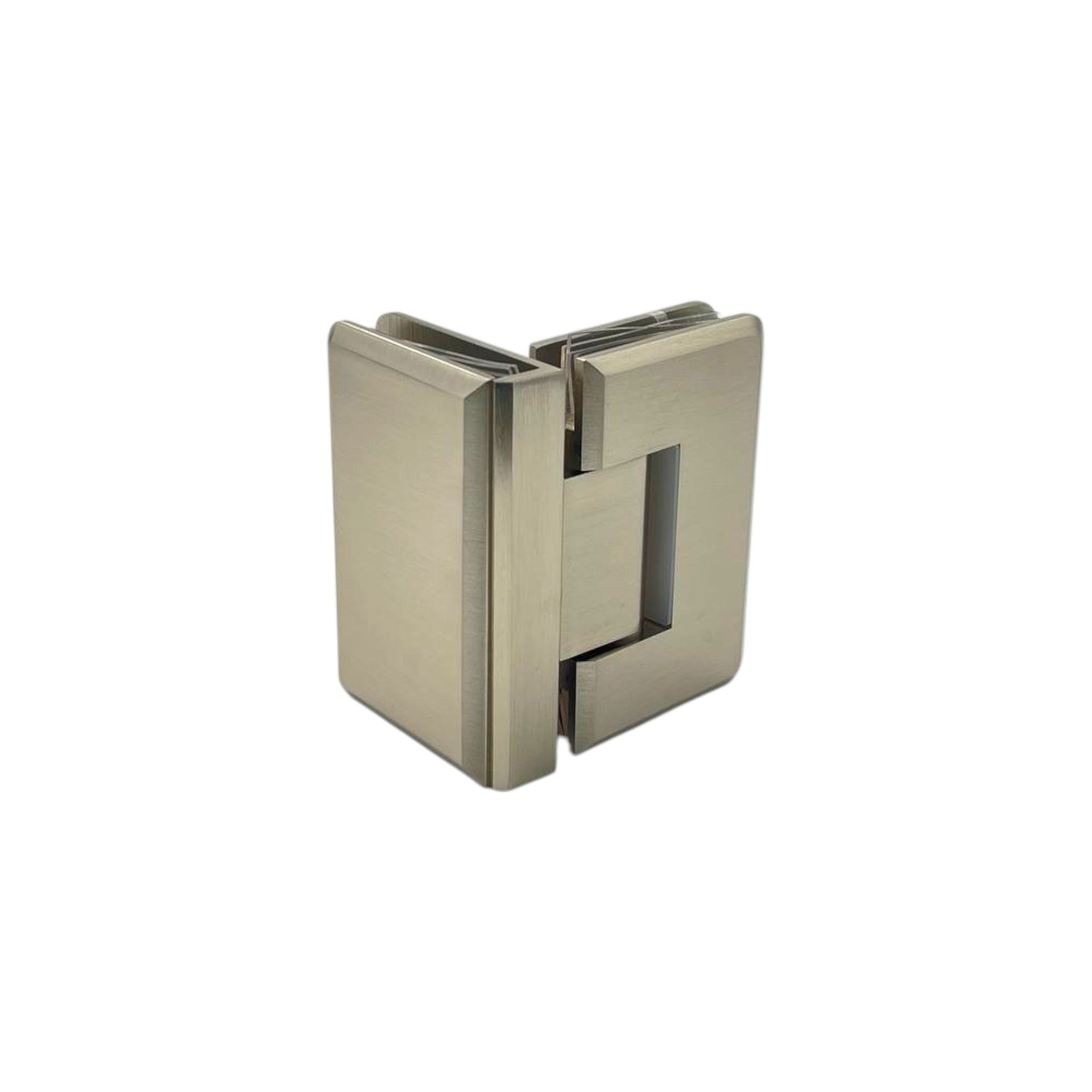

SH-013B-SNP

Glass-to-Glass 90° | Frameless Shower Hinge | Satin Nickel

90° swing hinge for mounting a shower door to a fixed sidelight. Solid brass construction delivers smooth, reliable action with self-centering near the closed position.

• Finish: Satin Nickel

• Material: Brass

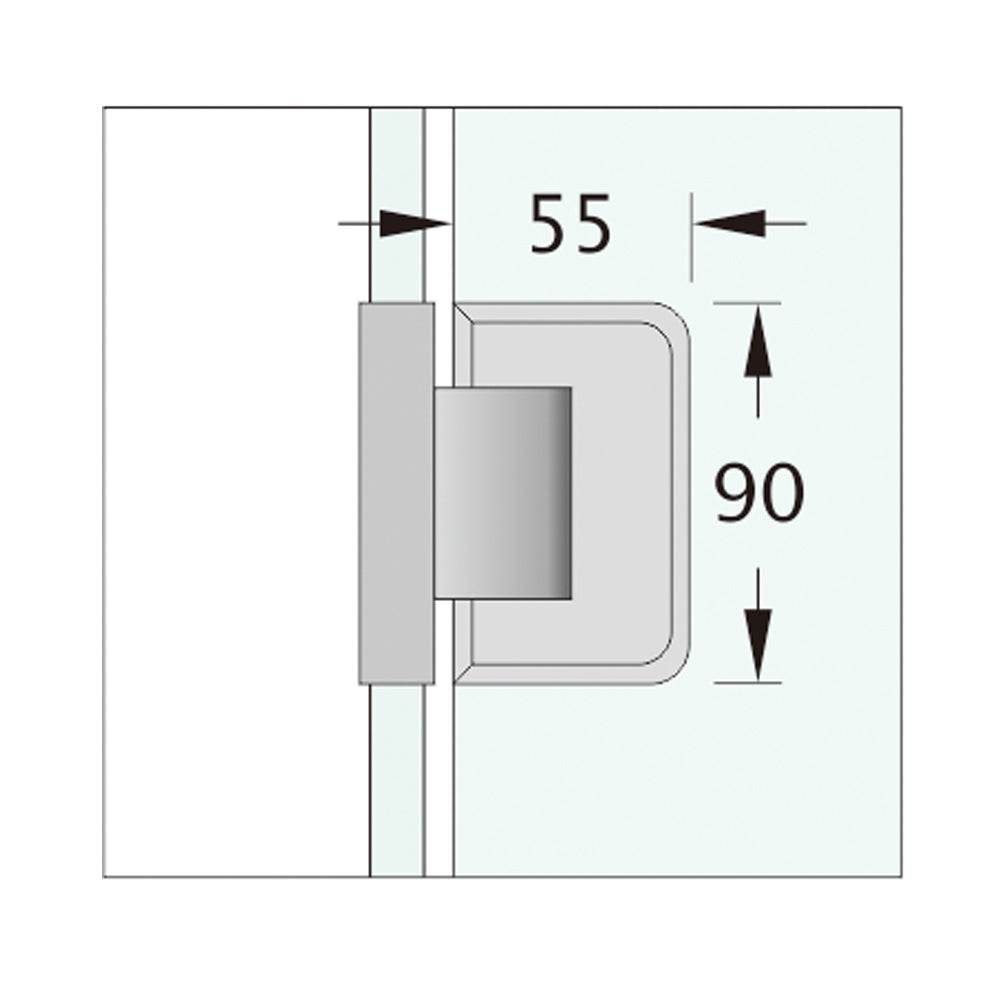

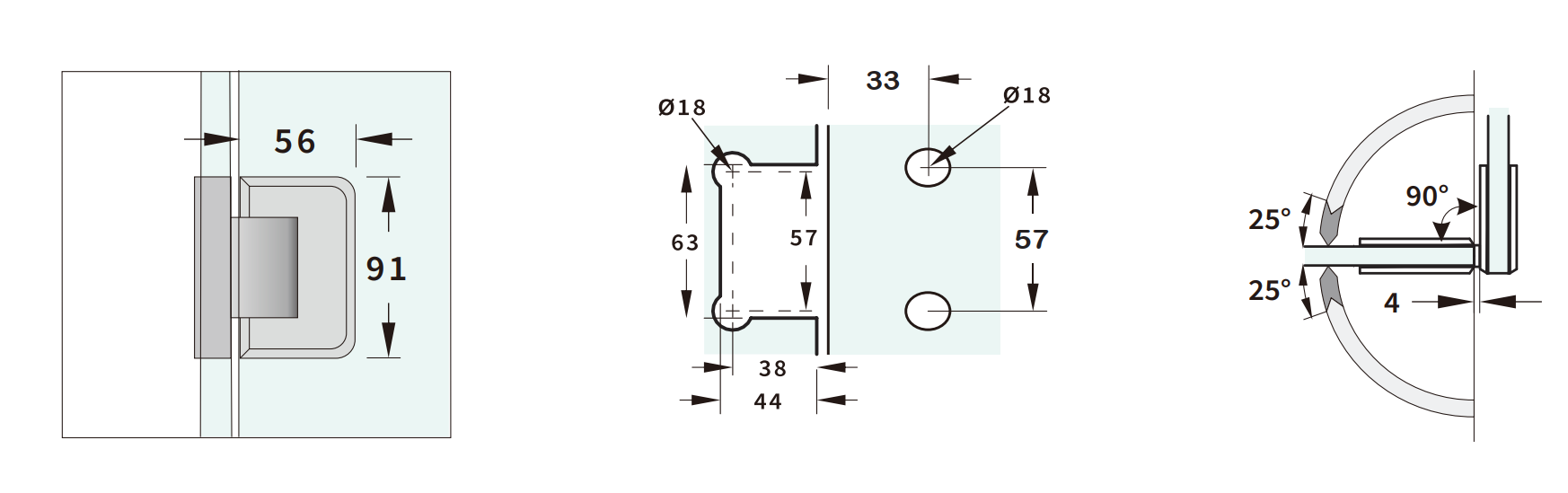

• Mounting Type: Glass-to-Glass (door to fixed sidelight)

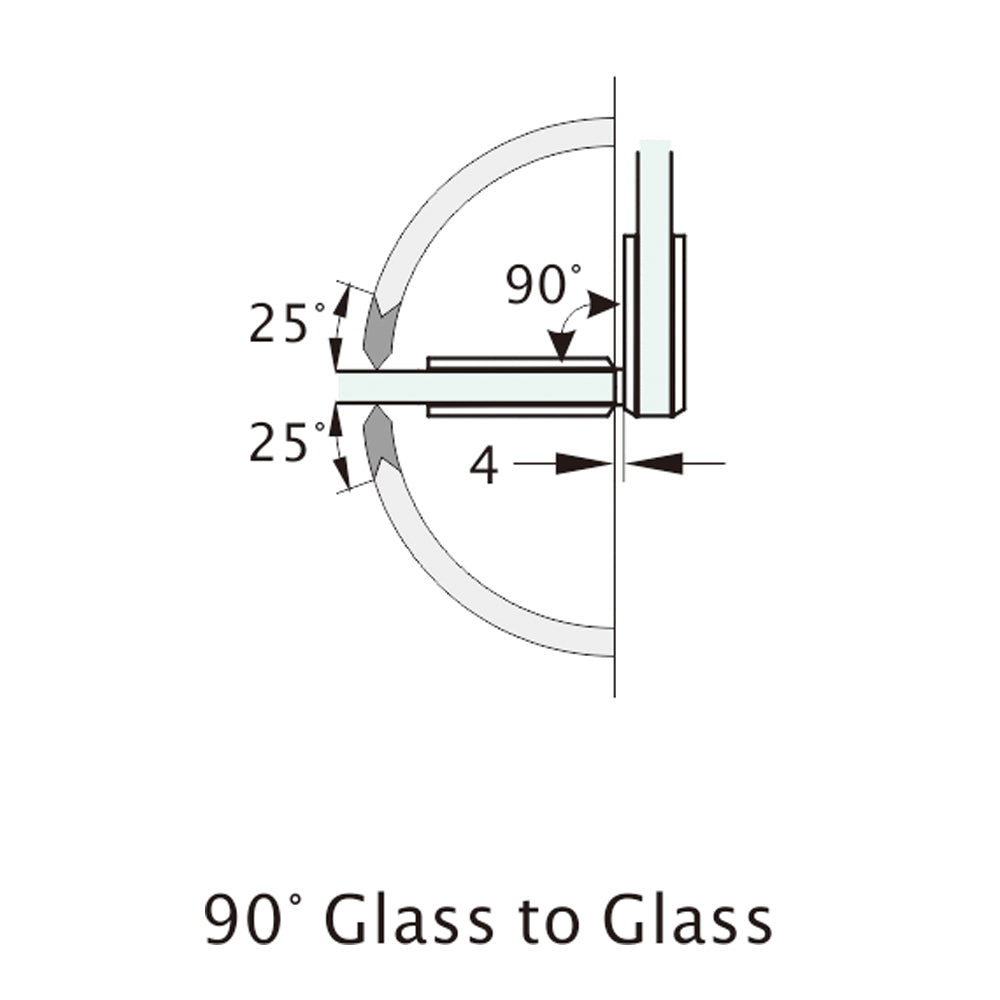

• Opening Angle: 90°

• Self-Centering: Within 25° of closed

• Door Weight: Up to 35 kg using two hinges

• Glass Width: Max 750 mm

• Glass Height: Max 2100 mm

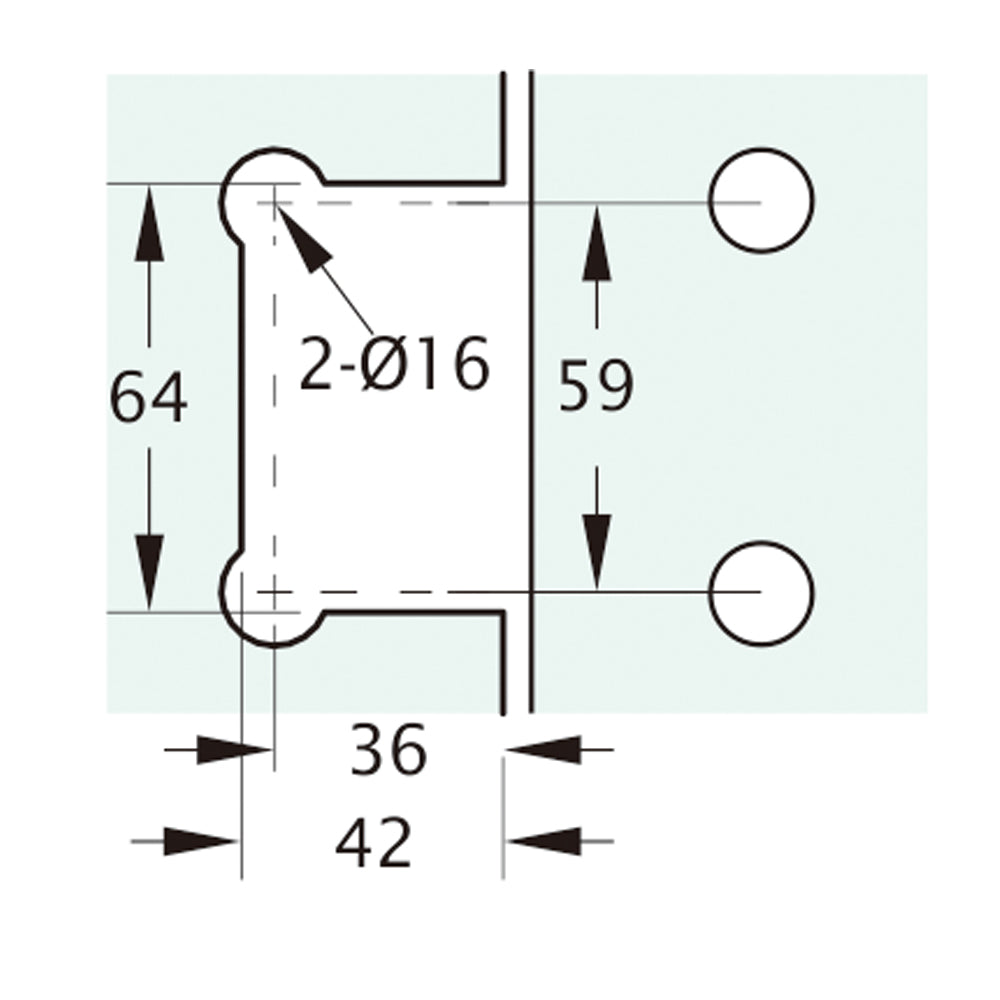

• Glass Thickness: 8–10 mm tempered

Package Includes: 1 hinge

Please note: All hinges are sold individually (per unit), not as a pair.
