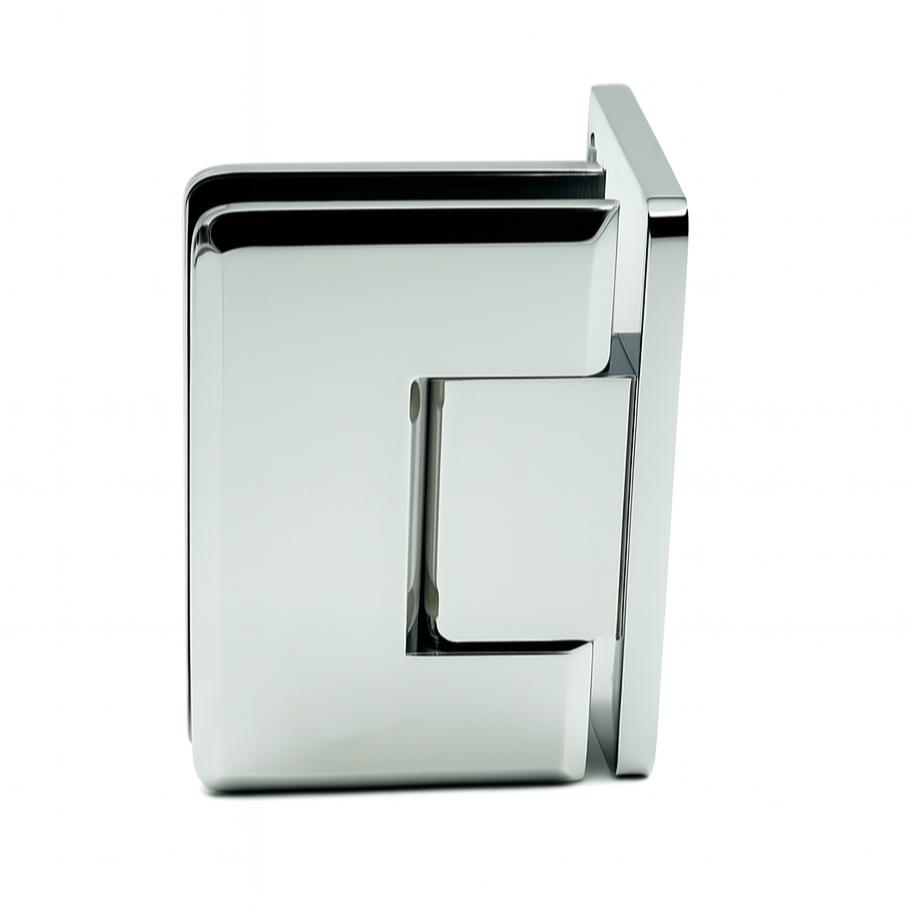

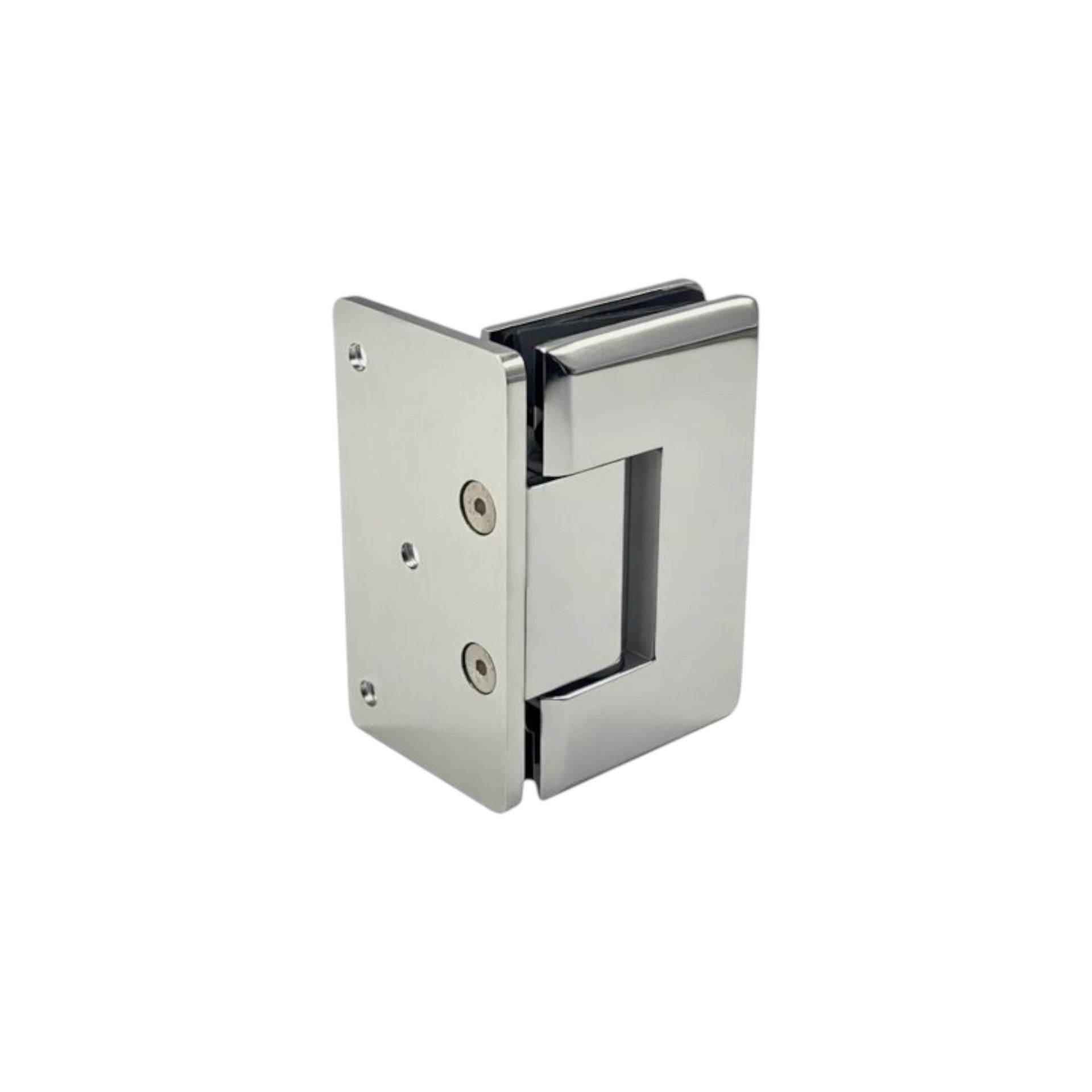

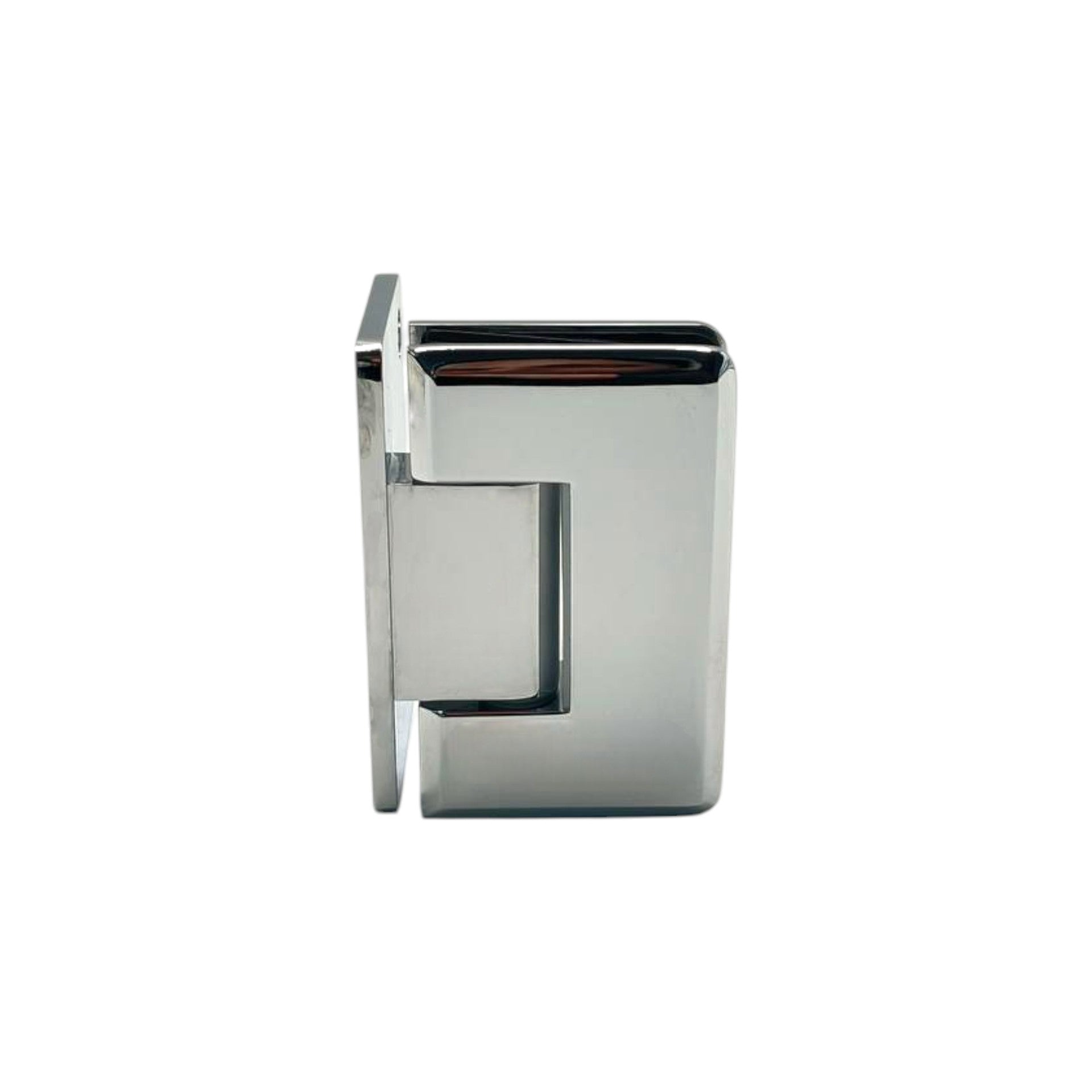

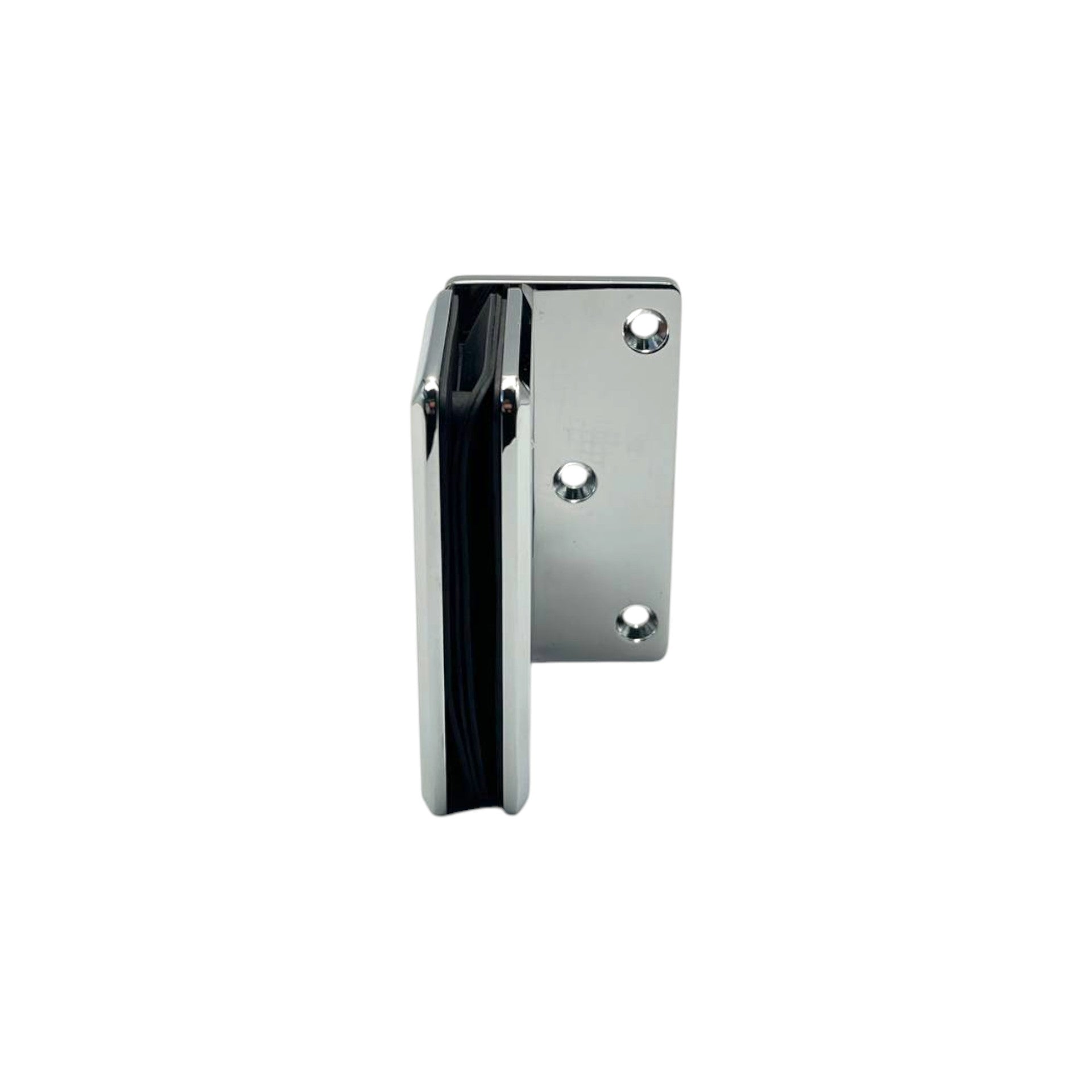

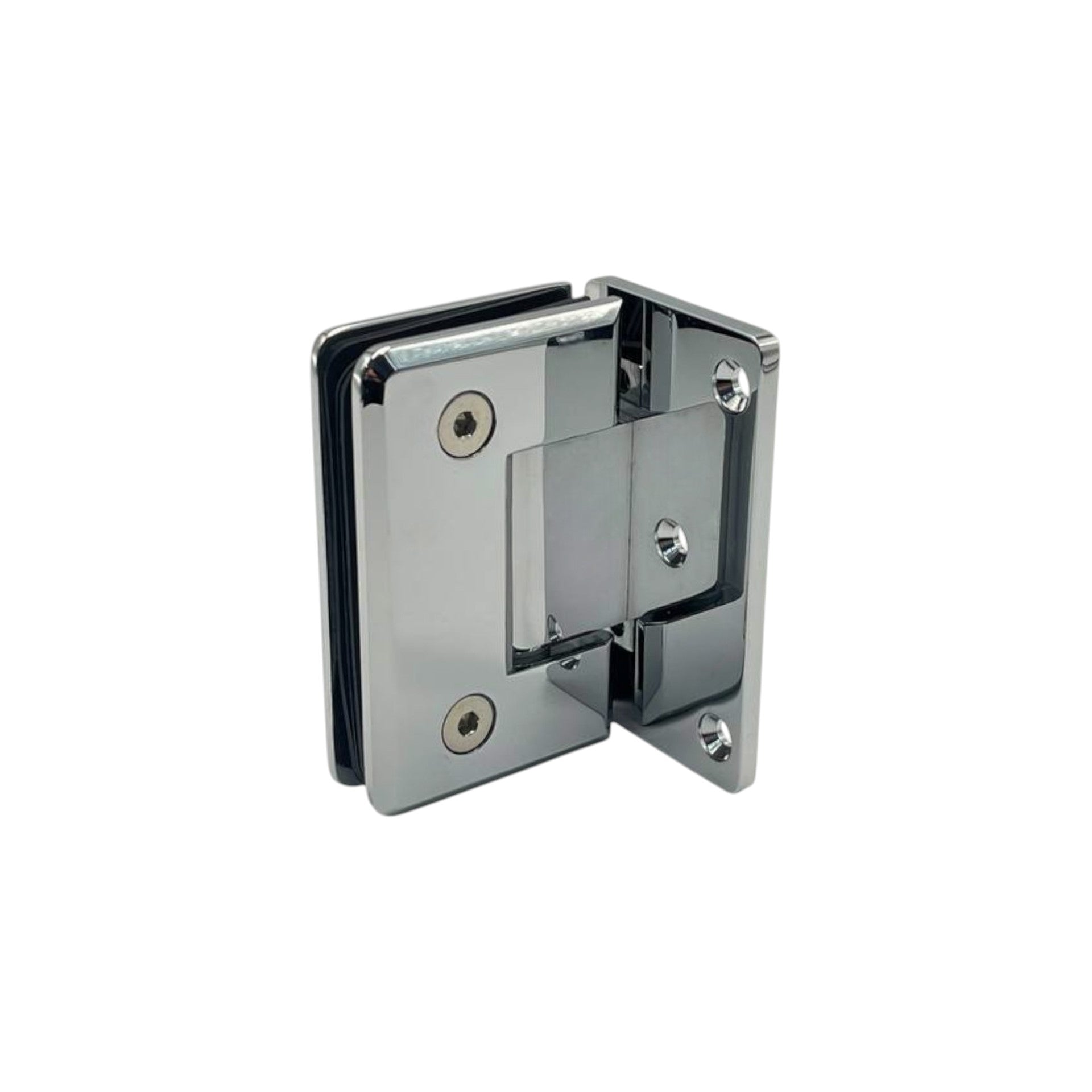

SH-012B-CP

Offset Plate Wall-to-Glass 90° | Frameless Shower Hinge | Polished Chrome

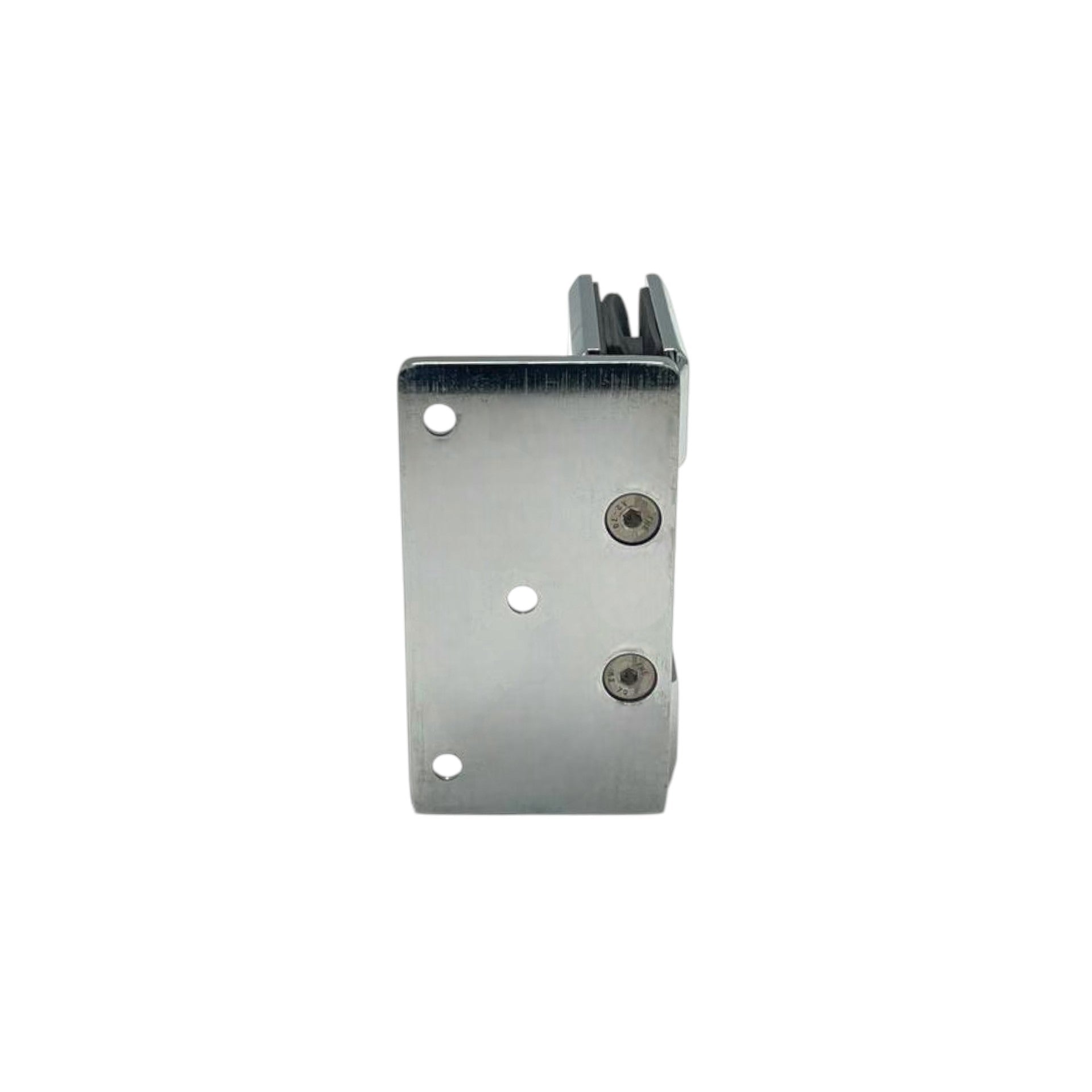

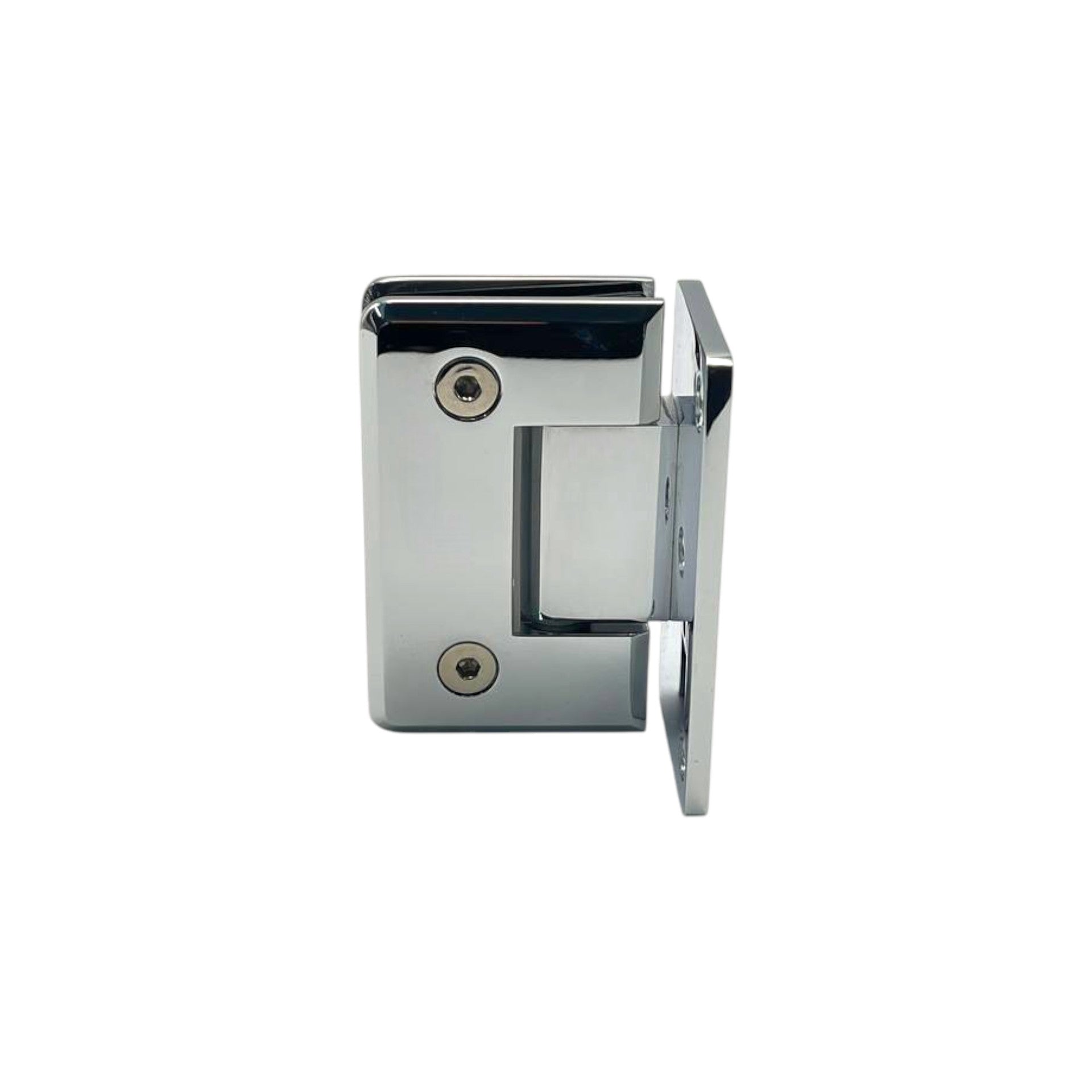

Offset-plate 90° swing hinge for mounting a shower door to a wall or fixed panel. Solid brass construction with smooth, reliable action and self-centering near the closed position.

• Catalog Code: SH-012B-CP

• Finish: Polished Chrome

• Material: Brass

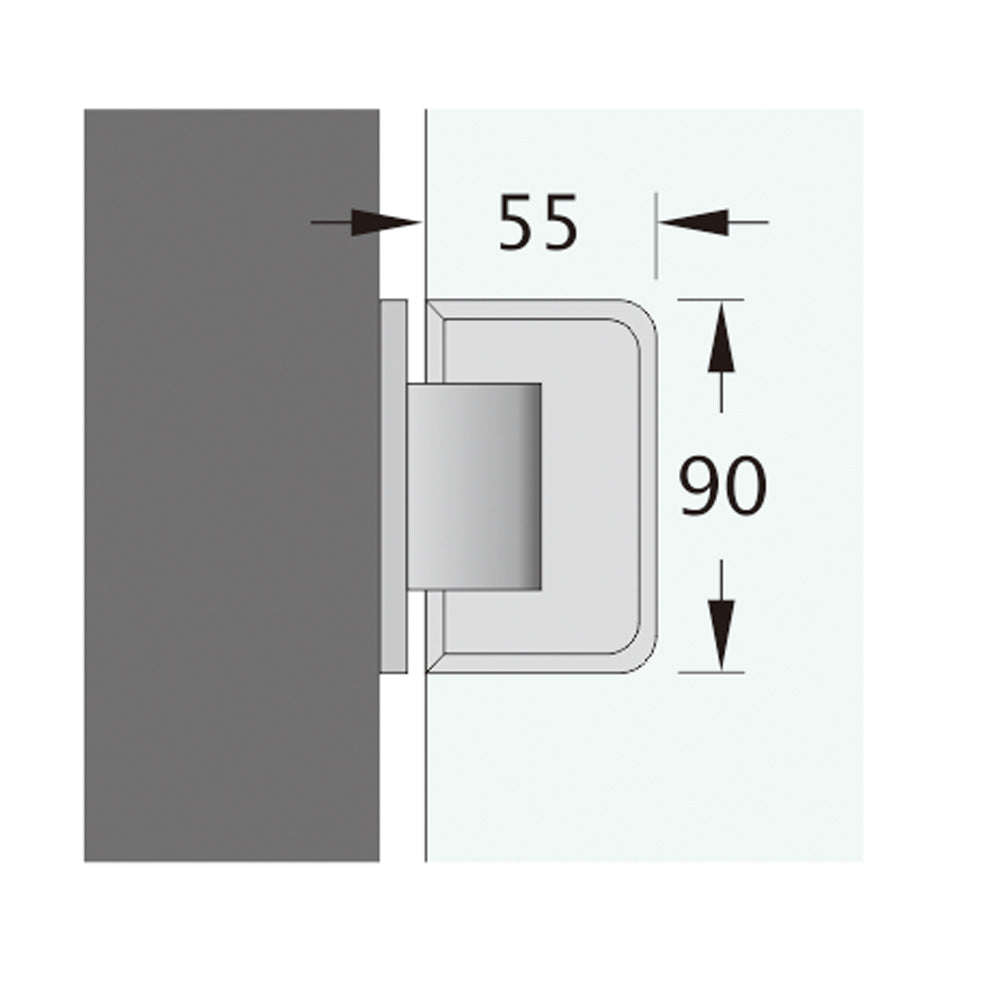

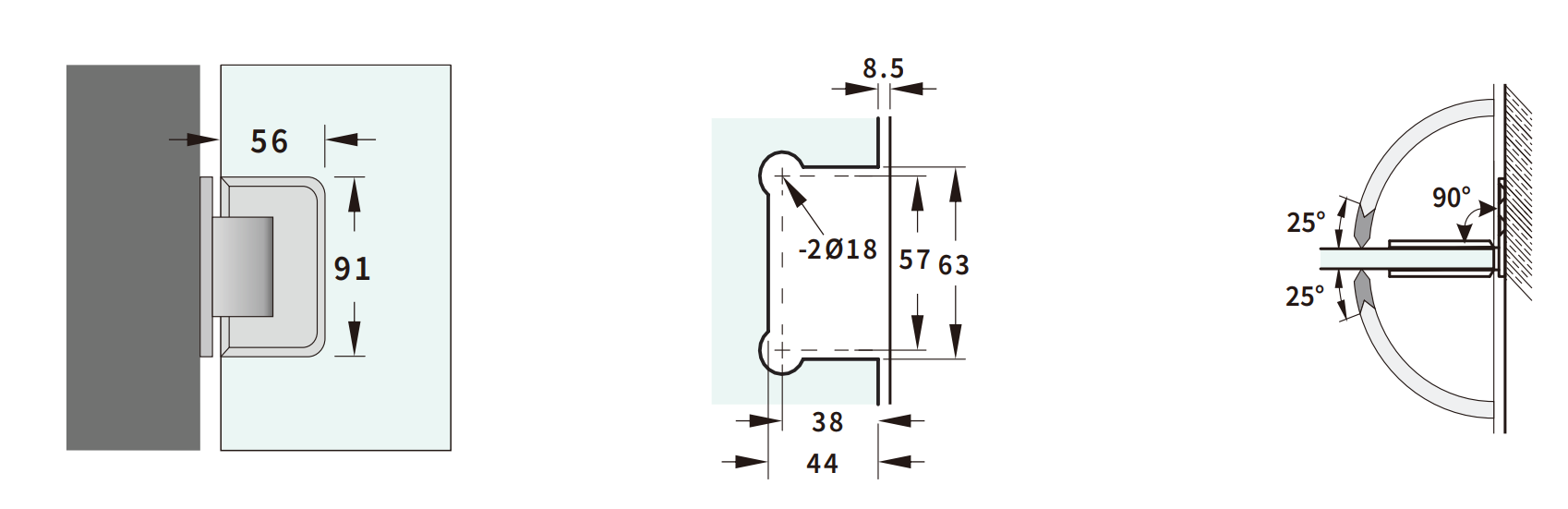

• Mounting Type: Wall-to-Glass (Offset Plate)

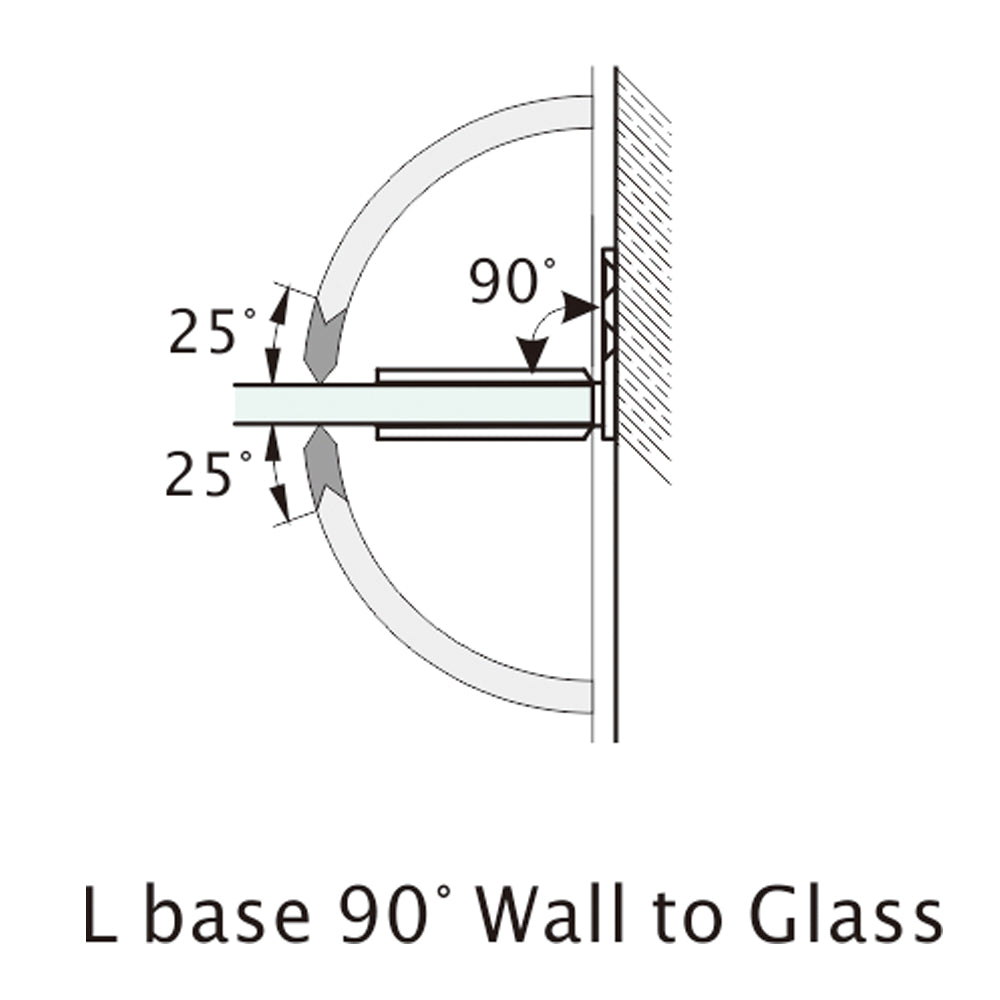

• Opening Angle: 90°

• Self-Centering: Within 25° of closed

• Door Weight: Up to 35 kg using two hinges

• Glass Width: Max 750 mm

• Glass Height: Max 2100 mm

• Glass Thickness: 8–10 mm tempered

Package Includes: 1 hinge

Please note: All hinges are sold individually (per unit), not as a pair.
