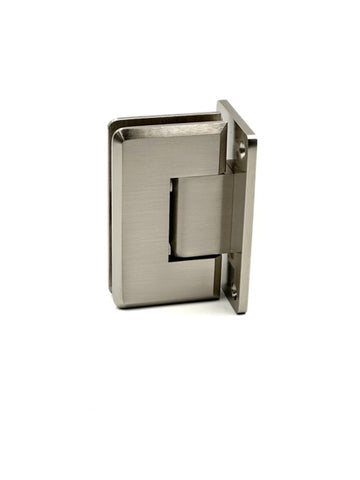

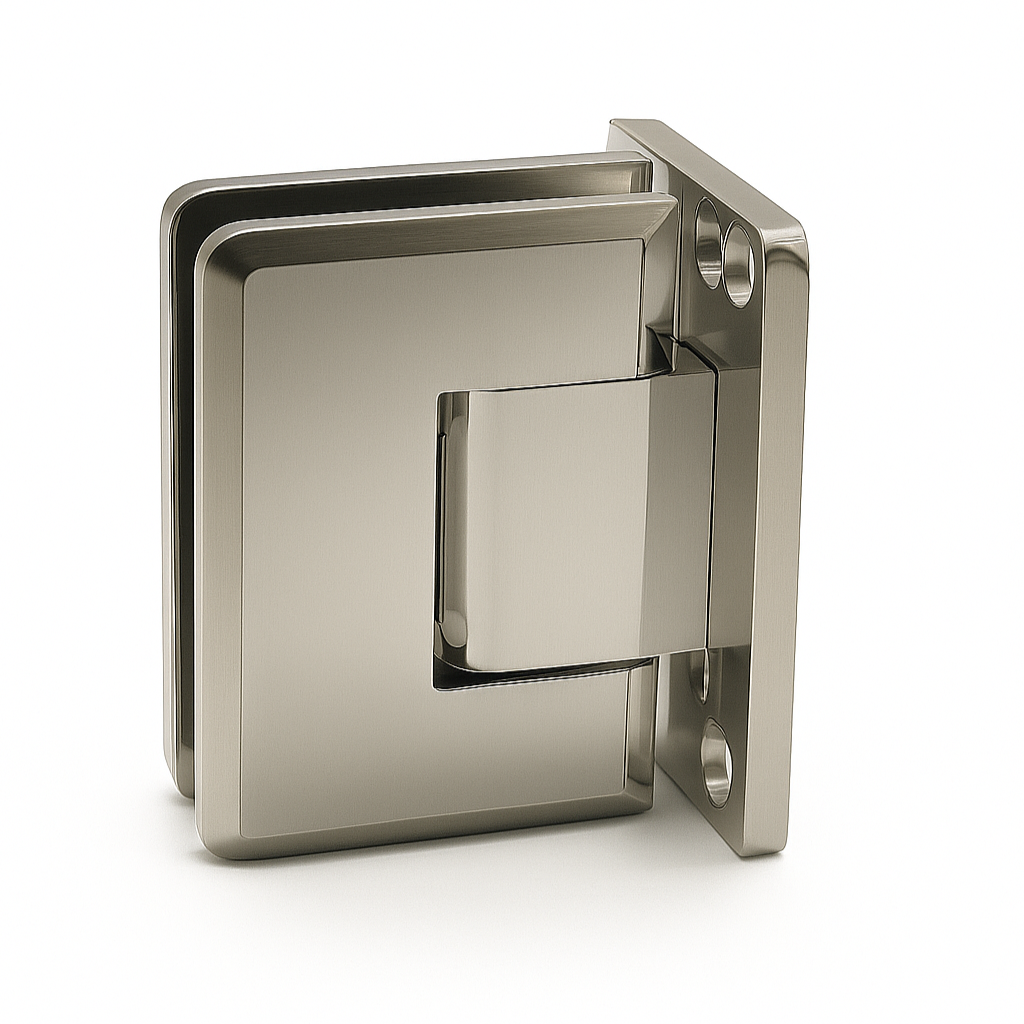

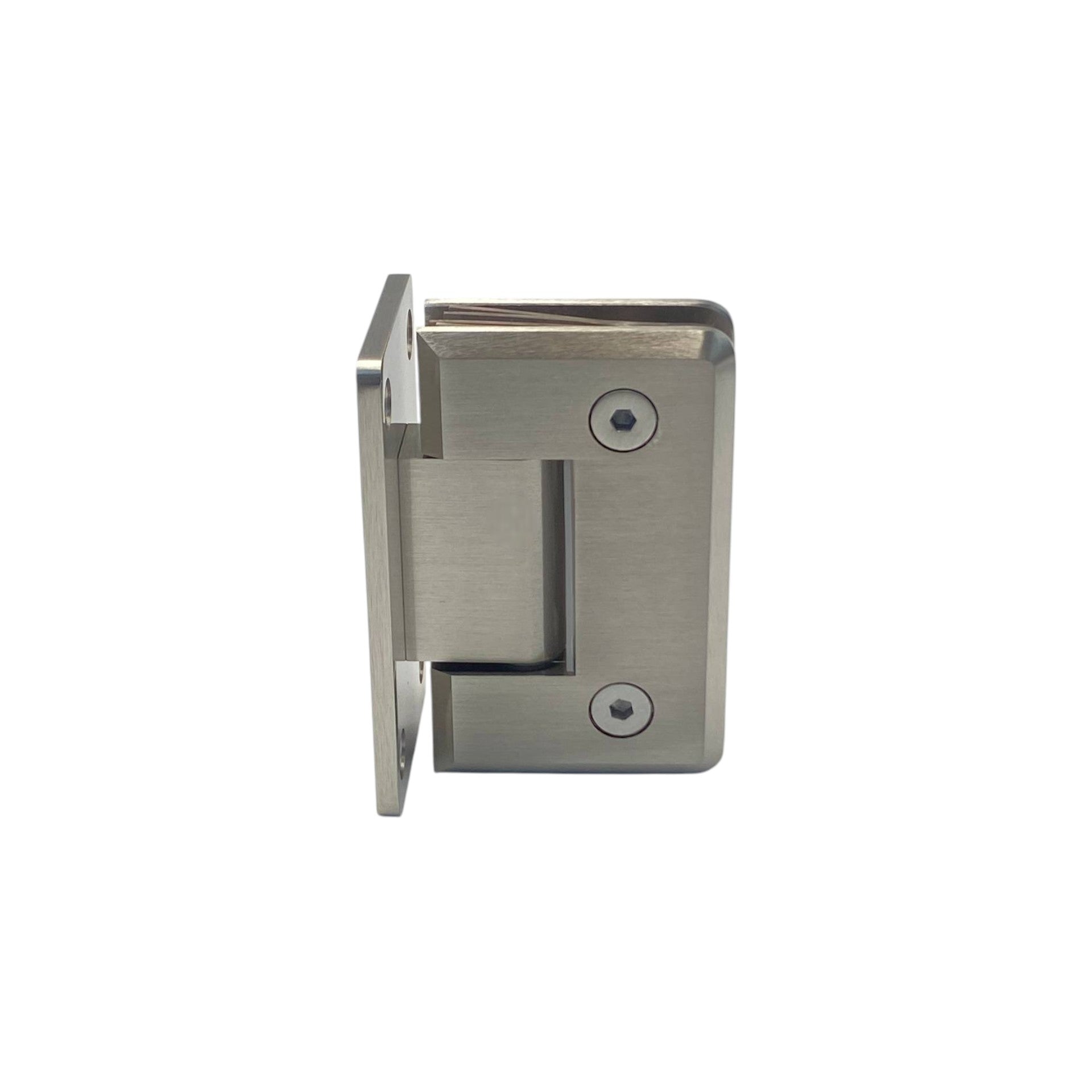

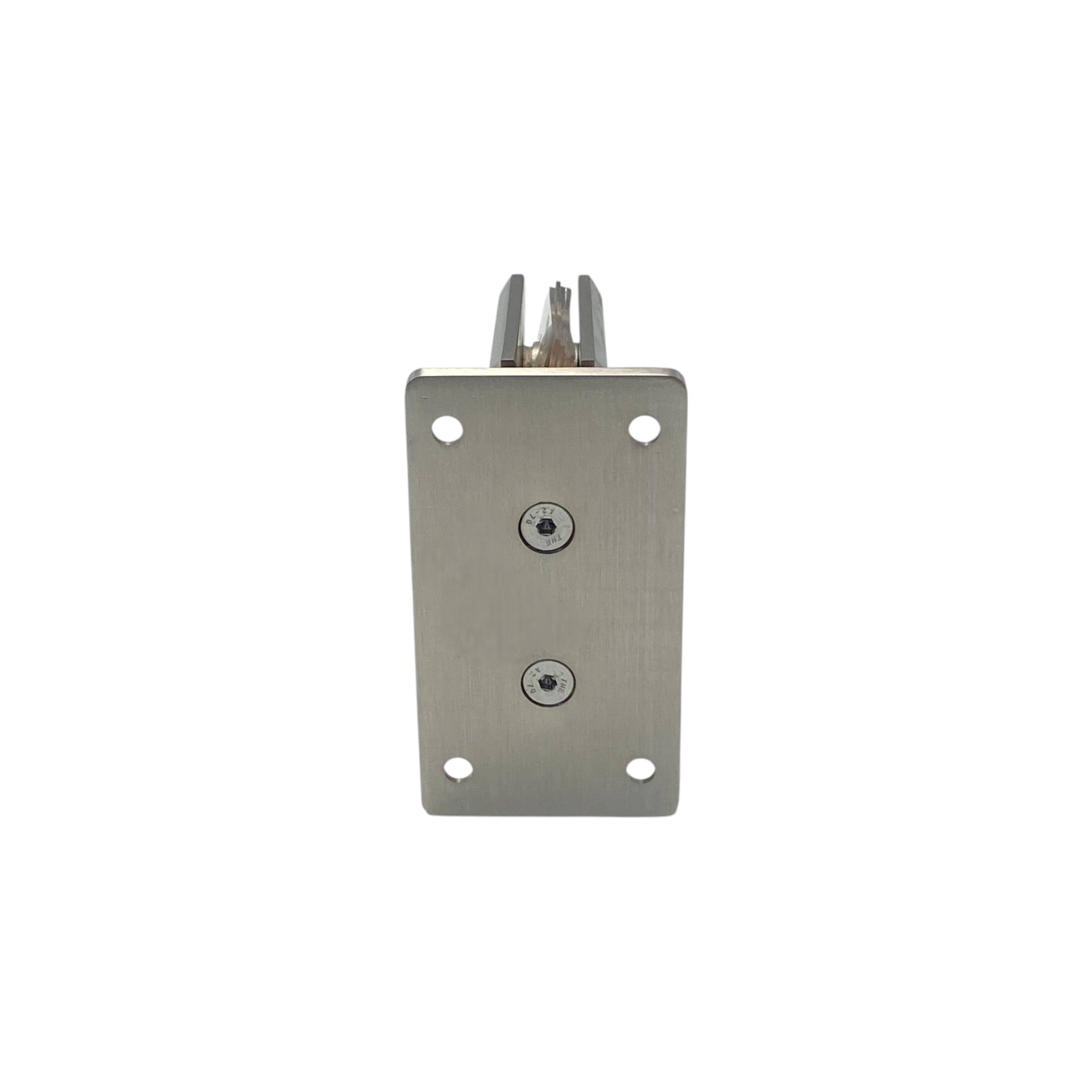

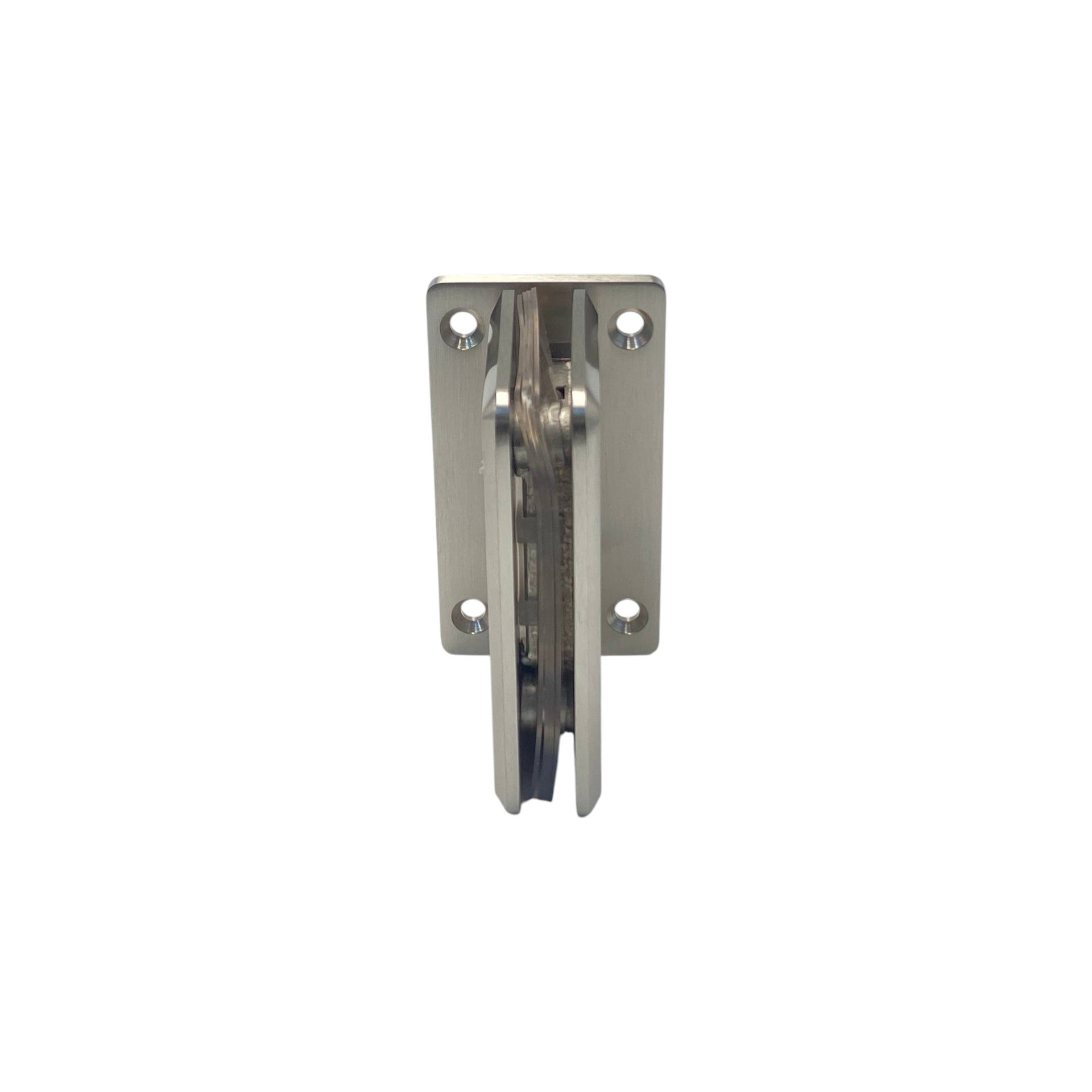

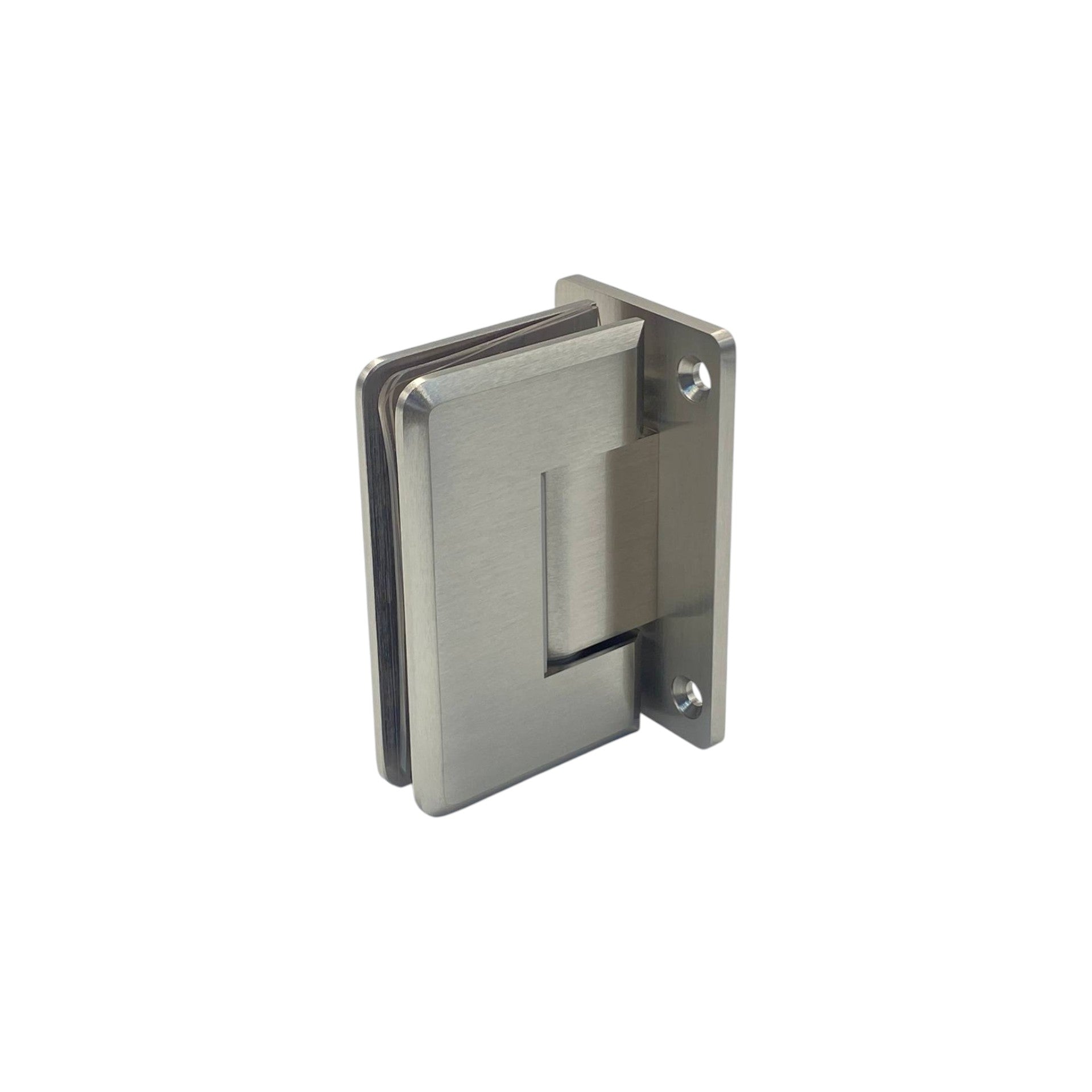

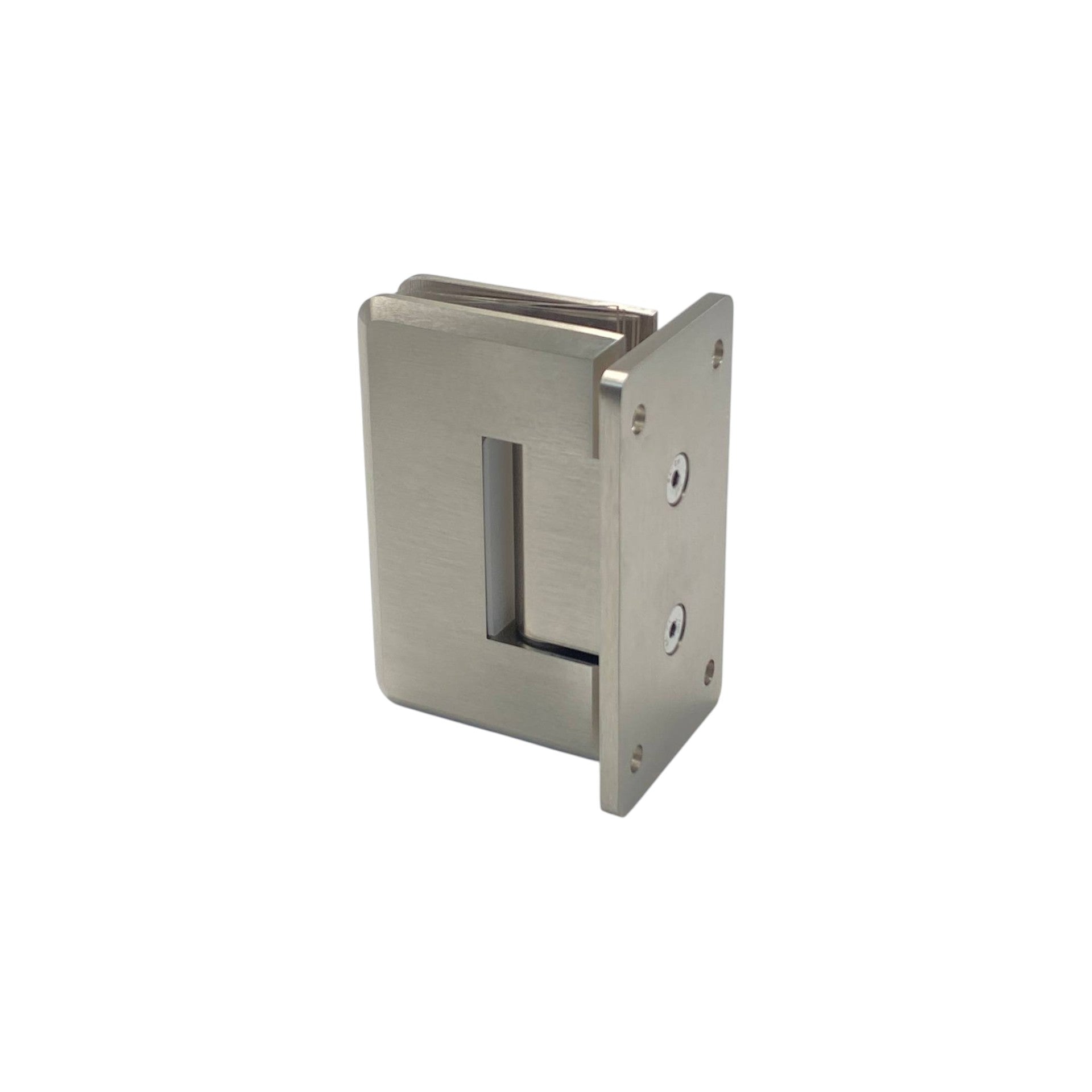

SH-011B-SNP

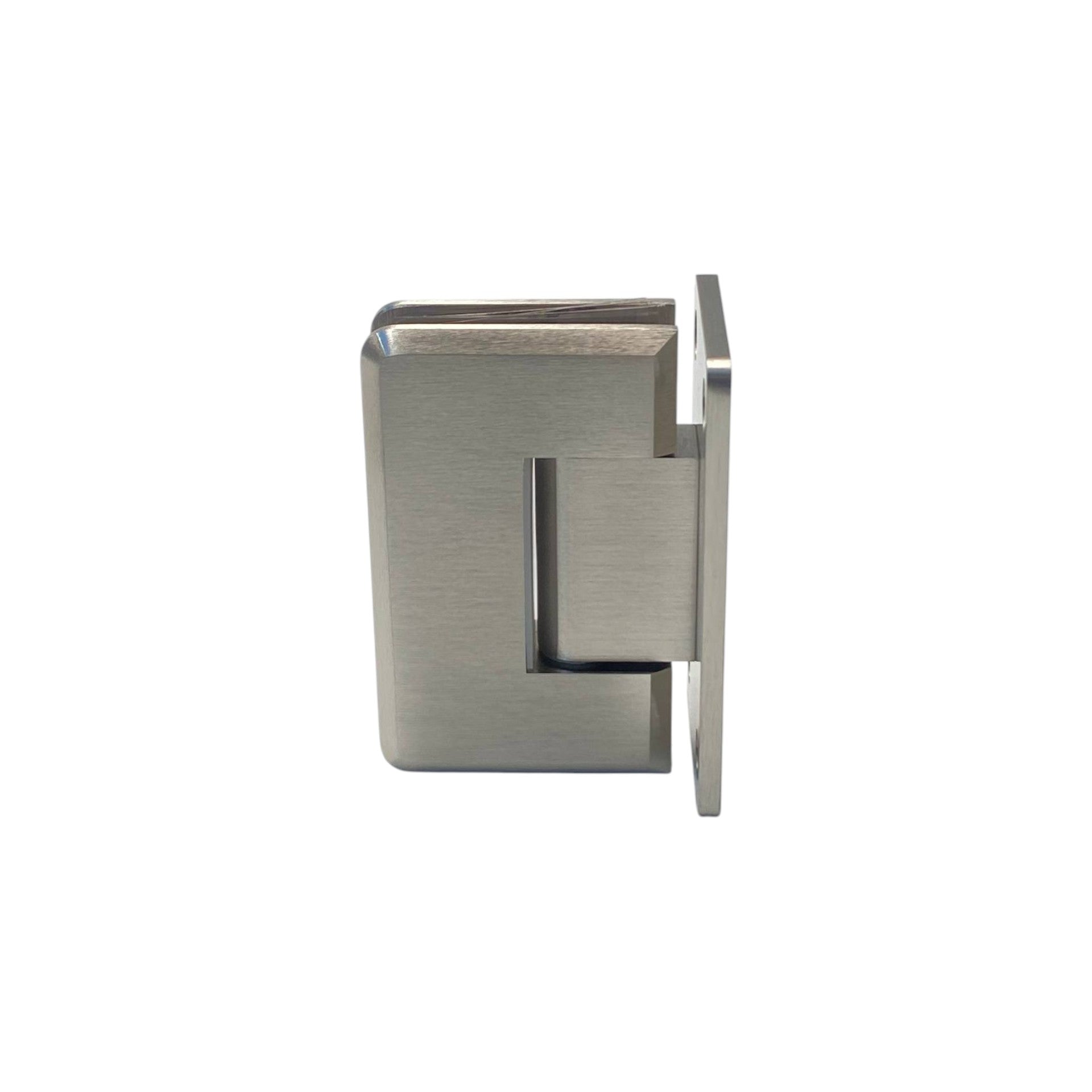

Full Plate Wall-to-Glass 90° | Frameless Shower Hinge | Satin Nickel

Full-plate wall-to-glass 90° swing shower door hinge with a load capacity of 35 kg (using two hinges). Designed for mounting a door to a wall or fixed panel, it supports glass panels up to 750 mm × 2100 mm and delivers smooth, reliable action with self-centering within 25° of the closed position.

  • Catalog Code: SH-011B-SNP

  • Finish: Satin Nickel

  • Material: Brass

  • Weight of Door: 35 kg using 2 hinges maximum

  • Glass Width: maximum 750 mm

  • Glass Height: maximum 2100 mm

  • Glass Thickness: 8–10 mm tempered

  • Opening Angle: 90°

  • Mounting Type: Wall-to-Glass (Full Plate)

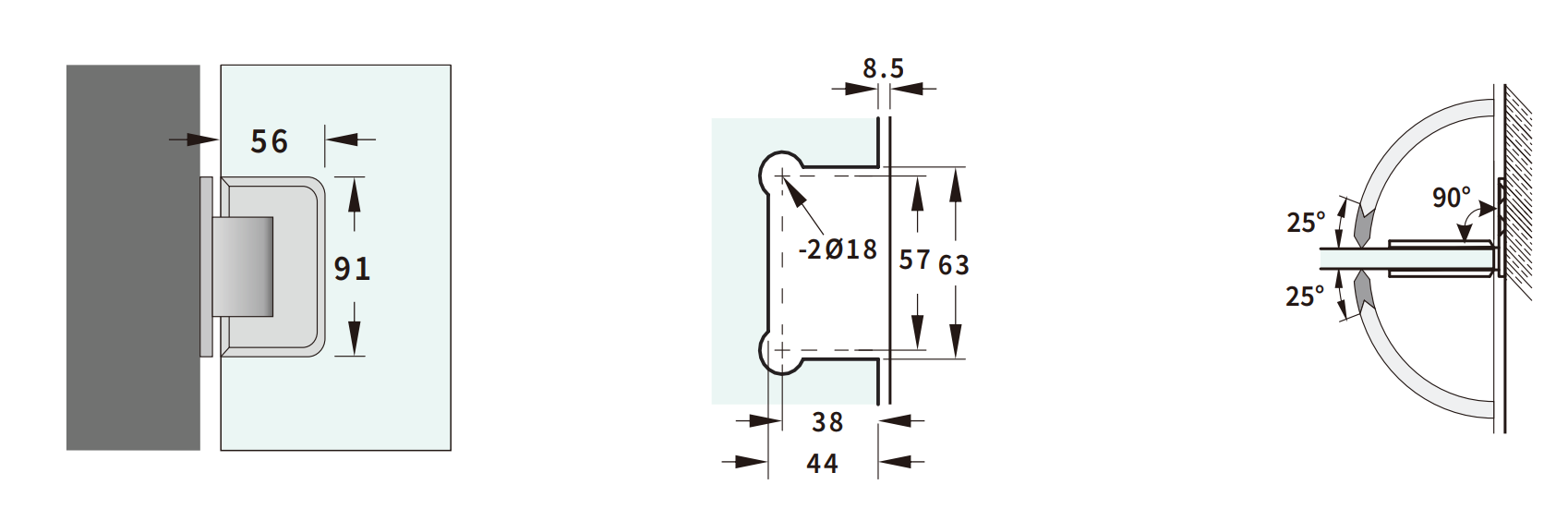

  • Closing Type: Self-centering when within 25° of closed position

Package Includes:
1 pack — contains 1 hinge

⚠️ Please note: All hinges are sold individually (per unit), not as a pair.

£30.31
£30.31
